| Standard specifications |
|
| |
|
| |
| Specifications(KA1,2 Series) |
Model |
Capacity
(kg) |
Lift
Speen(m/min) |
Lift
(m) |
Air
Pressure
(kgf/㎠)
|
Air
Consumption
(N-㎥/min) |
Weight
(kg) |
Hose
Dia
(mm) |
No
Load |
Rated
Load |
up |
down |
up |
down |
|

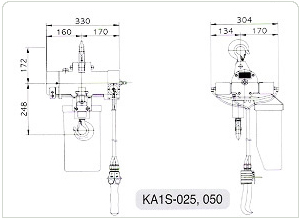

KA1S-025
KA1M-025 |
250 |
23 |
12 |
18 |
19 |
3 |
6 |
1.6 |
23
41 |
￠12/L=
Less than 10m
￠20/L=
10~20m |
|
KAIS-050
KA1M-050 |
500 |
19 |
9 |
12 |
15 |
3 |
6 |
1.6 |
23
47 |
|

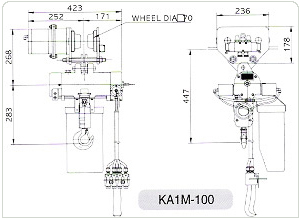

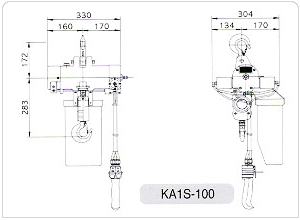

KA1S-100
KA1M-100 |
1,000 |
9.5 |
4.5 |
6 |
7.5 |
3 |
6 |
1.6 |
33
57 |
|
KA2S-100
KA2M-100 |
1,000 |
10 |
6 |
6.5 |
8 |
3 |
6 |
1.8 |
40
70 |
|
KA2S-200
KA2M-200 |
2,000 |
5 |
3 |
3.2 |
4 |
3 |
6 |
1.8 |
45
75 |
|
| |
| Specifications(KA3 Series) |
| Model |
Capacity
(kg) |
Lifting
Speed(m/min) |
Standard
Lift(m) |
Air
Pressure
(kgf/㎠) |
Air
Consumption
(N-㎥/min) |
Chain
Size(mm) |
Weight(kg) |
Hose
Dia(mm) |
|
KA3S-300
KA3M-300 |
3,000 |
3 |
3 |
6 |
3.14 |
12.5 |
75
140 |
- |
|
KA3S-600
KA3M-600 |
6,000 |
1.5 |
3 |
6 |
3.14 |
12.5 |
96
200 |
- |
|
| |
| Trolley |
| - |
l-Beam
Type |
KH-Track
Type |
|
Min Radius(mm) |
1,500 |
1,000 |
|
Travelling Speed(m/min) |
10~80 |
Manual |
| Size |
100,125,150 |
KH-Ⅰ,Ⅱ-L,Ⅱ |
| Remarks |
0.5~6ton |
0.25~1ton |
|
| |
| Note
:- Pull code type(PL), Pendant Push Button type(PB)
depend on request.
-Specifications subject to change without prior
notice.
warnig : The equipment shown and described in
this catalogus should not be used to lift or transport
people. |
|
|
|
|
|
