KD-1 type
저용량으로 설계된 KD-1 type Hoist는 더욱 작고 미려한 몸체, 슬립클러치 채용으로 완벽해진 안전성, 무결점을 실현한 극동의 미래형 제품으로 탁월한 성능과 작업생산성 향상에 적합한 최고의 제품입니다.

Standard specifications

모델명

Capacity
(kg)

Lift
(m)
Duty rating
(min)
Speed (m/min)
Test load(kg)
Lifting - Traversing -
Single Dual Single
Single Dual 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz

KD-1

490

4

 30 15/5 6.7 8 6.7/17 8/2 - - 613

KD-1

500

4

 30 15/5 6.7 8 6.7/17 8/2 - - 625

KD-1

1,000

4

 30 15/5 6.7 8 6.7/1.7 8/2 - - 1,250

KD-1

2,000

4

 30 15/5 3.35 4 3.35/0.85 4/1 - - 2,500

KD-1M

490

4

 30 15/5 6.7 8 6.7/1.7 8/2 10(20) 12(24) 613
KD-1M 500 4 30 15/5 6.7 8 6.7/1.7 8/2 10(20) 12(24) 625
KD-1M 1,000 4 30 15/5 6.7 8 6.7/1.7 8/2 10(20) 12(24) 1,250
KD-1M 2,000 4 30 15/5 3.35 4 3.35/0.85 4/1 10(20) 12(24) 2,500


모델명

Out Put(kw)

Load chain dia x fall lines
Net Weight
(kg)
Lifting -
 Traversint -
Single
Dual
 Single
50Hz 60Hz 50Hz 60Hz 50Hz 60Hz KD-1 KD-1M KD-1G KD-1P

490

0.67

0.8

 0.67/0.17 0.8/0.20 0.33 0.4 ￠7.1x1 55 95 80 76

500

0.67

0.8

 0.67/0.17 0.8/0.20 0.33 0.4 ￠7.1x1 55 95 80 76

1,000

1.25

1.5

 1.25/0.32 1.5/0.38 0.33 0.4 ￠7.1x1 59 100 85 81

2,000

1.25

1.5

 1.25/0.32 1.5/0.38 0.33 0.4 ￠7.1x1 75 115 97 93

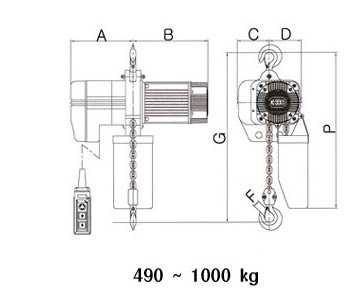

Dimension

Model
Capacity
(kg)
G A B C D F H I K L M P
Std.I-Beam width(mm)
Min.radius for Curve(mm)
KD-1 490

450

 258 265 132 132 28 - - - - - 663 - -

KD-1

 500

450

 258 265 132 132 28 - - - - - 663 - -

KD-1

 1,000

450

 258 308 132 132 28 - - - - - 663 - -

KD-1

 2,000

640

 258 308 97 167 33 - - - - - 683 - -
KD-1M 490

435

 258 265 75,100,125 - 28 310 175 230 27 70 663 75,100,125 1,000
KD-1M
500
 435 258 265 75,100,125 - 28 310 175 230 27 70 663 75,100,125 1,000
KD-1M
1,000
 435 258 308 75,100,125 - 28 310 175 230 27 100 663 75,100,125 1,000
KD-1M
2,000
 670 258 308 100,125,150 - 33 314 184 296 31 115 667 100,125,150 1,500
* G = Min, distance between hooks or from bottom of l-beam to Hook.
