KDL type
권상훅크의 양정 높이를크게한 호이스틀 천장이 옥내에서 화물을 보다 높이 올릴 경우에 사용됩니다.

같은 용량의 모노레일형 호이스트에 비해 250~400mm 정도 높게 올릴수 있습니다.

Standard specifications
Model
Capacity
(kg)
Lift(m)
Duty rating(min)
Speen(m/min)
 Test Load(kg)
Lifting -
 Traversing -
50Hz 60Hz 50Hz 60Hz

KDL - 2M

 2000

4

 30 6.2 7.4 10 12 2,500

KDL - 2M

 2800

4

 30 4.5 6.2 10 10 3,500

KDL - 2M

 5000

4

 30 2.3 3.1 10 12 6,2500

EMT-ECL-3M

 490

4

 30 8.3 10 10(20) 12(24) 613

EMT-ECL-3M

 500

4

 30 8.3 10 10(20) 12(24) 625

EMT-ECL-3M

 1,000 4 30 5.4 6.4 10(20) 12(24) 1,250

EMT-ECL-3M

 2,000 4 30 2.7 3.2 10(20) 12(24) 2.

Model
Capacity
(kg)
Out put(kw)
Load chain dia x fall lines
 Net Weight(kg)
Lifting -
Traversing -
50Hz
60Hz
 50Hz 60Hz

KDL - 2M

 2000

2.5

 3.0 0.33 0.4 ￠11.2x1 190

KDL - 2M

 2800

2.5

 3.0 0.33 0.4 ￠11.2x1 210

KDL - 2M

 5000

2.5

 3.0 0.33 0.4 ￠11.2x2 230

EMT-ECL-3M

 490

0.92

 1.1 0.16 0.2 ￠6.3x1 55

EMT-ECL-3M

 500

0.92

 1.1 0.16 0.2 ￠6.3x1 55

EMT-ECL-3M

 1,000 1.08 1.3 0.16 0.2 ￠7.1x1 590

EMT-ECL-3M

 2,000 1.08 1.3 0.33 0.4 ￠7.1x2 75

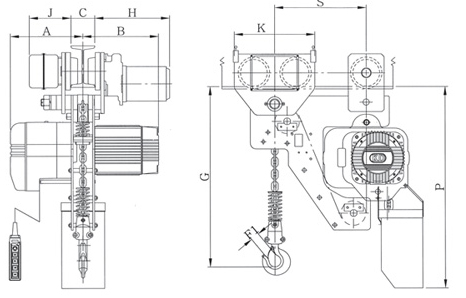

Dimension


Model
Capacity
(kg)

G

 A B C F₁ H J K S P Std.I-Beam Width(mm) Min. radius for Curve
(mm)
KDL-2M 2000

530

 305 340 100,125,150 33 314 184 296 400 800 100,125,150 ∞

KDL-2M

 2800

550

 305 340 100,125,150 41 323 193 337 400 800 100,125,150 ∞

KDL-2M

 5000

680

 305 340 125,150,175 48 332 202 384 500 800 125,150,175 ∞
EMT-ECL-3M 490

360

 230 236 75,100,125 28 350 235 285 400 685 75,100,125 ∞
EMT-ECL-3M 500 360 230 236 75,100,125 28 350 235 285 400 685 75,100,125 ∞
EMT-ECL-3M 1,000 360 240 250 75,100,125 28 350 235 285 400 685 75,100,125 ∞
EMT-ECL-3M 2,000 640 240 250 100,125,150 33 354 239 300 400 685 100,125,150 ∞

* G = Min, distance between hooks or from bottom of I-beam to Hook.
