Large Capacity
7.5ton 부터 그 이상 용량인 30ton 까지 KD type 전동체인호이스트는 오랜 경험과 신기술을 바탕으로 만들어진 산물입니다.
최고로 균형잡힌 대용량 KD type 호이스트는 복합구조로서 KD-2.5ton 전동체인호시으트의 부품과 로드체인 및 휠의 가장 안정된 구조를 사용합니다.

Standard specifications
Model
Capacity
(kg)
Lift(m)
Duty rating(min)
Speen(m/min)
 Test Load(kg)
Lifting -
 Traversing -
50Hz 60Hz 50Hz 60Hz

KD-2

 7,500

4

 30 2.6 3.1 - - 9,375

KD-2

 10,000

4

 30 2.6 3.1 - - 12,500

KD-2

 15,000

4

 30 1.5 1.8 - - 18,750

KD-2

 20,000

4

 30 1.1 1.35 - - 25,000

KD-2

 30,000

4

 30 0.86 1.04 - - 37,500

KD-2M

 7,500 4 30 2.6 3.1 10 12 9,375

KD-2M

 10,000 4 30 2.6 3.1 10 12 12,500
KD-2M 15,000 4 30 1.5 1.8 10 12 18,750
KD-2M 20,000 4 30 101 1.35 10 12 25,000
KD-2M 30,000 4 30 0.86 1.04 10 12 37,500

Capacity
(kg)
Out put(kw)
Load chain dia x fall lines
Net Weight(kg)
Lifting -
Traversing -
50Hz
60Hz
 50Hz 60Hz
KD-2
KD-2M
7,500

2X2.9

 2X3.5 0.63 0.75 ￠11.2x4 360 450
10,000

2X2.9

 2X3.5 0.63 0.75 ￠11.2x4 360 450
15,000

2X2.5

 2X3.0 2X1.25 2X1.5 ￠11.2x6 540 630
20,000

2X2.5

 2X3.0 2X1.25 2X1.5 ￠11.2x8 570 660
30,000

2X2.9

 2X3.5 2X1.25 2X1.5 ￠11.2x12 660 800
Dimension

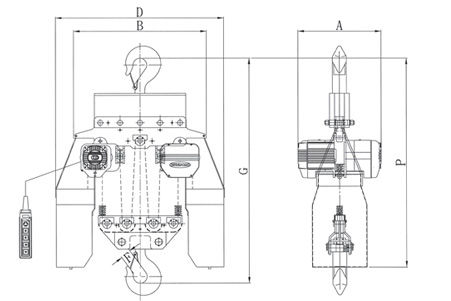

KD-2 (Large Capacity)

KD-2M (Large Capacity)

Model
Capacity
(kg)

G

 A B C F₁ H J K S P Std.I-Beam Width(mm) Min. radius for Curve
(mm)
KD-2 7,500

1220

 634 770   815 72       1050

KD-2

 10,000

1220

 634 770   815 72       1050

KD-2

 15,000

1870

 634 1000   1045 111       1500
KD-2 20,000

1870

 634 1080   1125 112       1650
KD-2 30,000 1950 840 1100   1550 128       1650
KD-2M 7,500 1140 840 770 150,175,200 1220 72 370 210 405 950 150,175,200 2,500
KD-2M 10,000 1140 840 770 150,175,200 1220 72 370 210 405 950 150,175,200 2,500
KD-2M 15,000 1350 840 1080 150,175,200 1530 111 426 426 840 1350 150,175,200 ∞
KD-2M 20,000 1450 840 1080 150,175,200 1530 112 426 426 840 1400 150,175,200 ∞
KD-2M 30,000 1550 840 1100 ~ 1553 128 450 450 1100 1500 ~ ∞

* G = Min, distance between hooks or from bottom of I-beam to Hook.
   c = Width of I-Beam
   b = c/2
