KD-2 type
저소음형으로 설계된 KD-2 type Hoist 는 강력모터 채용과 이중브레이크 및 리미트를 장착, 최고의 안전성으로 운반하역의 합리화를 추구한 최고의 제품입니다.

Standard specifications

Model

Capacity
(kg)

Lift
(m)
Duty rating
(min)
Speed (m/min)
Test load(kg)
Lifting - Traversing -
Single Dual Single
Single Dual 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz

KD-2

 2,000

4

 30 15/5 6.2 7.4 6.2/1.6 7.4/1.8 - - 2,500

KD-2

 2,800

4

 30 15/5 4.5 5.4 4.5/1.1 5.4/1.3 - - 3.500

KD-2

 3,000

4

 30 15/5 4.5 5.4 4.5/1.1 5.4/1.3 - - 3.750

KD-2

 5,000

4

 30 15/5 2.3 2.7 2.3/0.6 2.7/0.8 - - 6,250

KD-2M

 2,000

4

 30 15/5 6.2 7.4 6.2/1.6 7.4/1.8 10 12 2,500
KD-2M 2,800 4 30 15/5 4.5 5.4 4.5/1.1 5.4/1.3 10 12 3,500
KD-2M 3,000 4 30 15/5 4.5 5.4 4.5/1.1 5.4/1.3 10 12 3,750
KD-2M 5,000 4 30 15/5 2.3 2.7 2.3/0.6 2.7/0.7 10 12 6,250


Capacity
(kg)

Out Put(kw)

Load chain dia x fall lines
Net Weight
(kg)
Lifting -
 Traversint -
Single
Dual
 Single
50Hz 60Hz 50Hz 60Hz 50Hz 60Hz KD-
2		 KD-2M KD-2G KD-2P

2,000

2.5

3.0

 2.5/0.63 3.0/0.75 0.33 0.4 ￠11.2x1 137 177 162 157

2,800

2.5

3.0

 2.5/0.63 3.0/0.75 0.33 0.4 ￠9.5x2 151 208 191 186

3,000

2.5

3.0

 2.5/0.63 3.0/0.75 0.33 0.4 ￠9.5x2 151 208 191 186

5,000

2.5

3.0

 2.5/0.63 3.0/0.75 0.33 0.4 ￠11.2x2 160 243 226 221

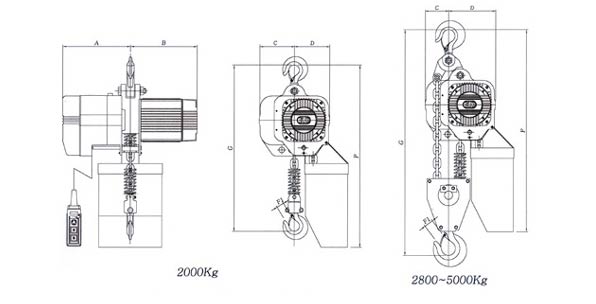

Dimension

Capacity
(kg)
G
 A B C P
KD-2

KD-2M

 KD-2 KD-2M KD-2 KD-2M KD-2 KD-2M KD-2 KD-2M

2,000

 790

772

 303 303 317 317 168 100,125,150 805 770

2,800

 970

964

 303 303 317 317 113 100,125,150 895 900

3,000

 970

964

 303 303 317 317 113 100,125,150 895 900
5,000 1,080

1,054

 303 303 317 317 113 125,150,175 970 950

Capacity
(kg)
 D

F

 H I K L M Std.I-Beam
width(mm)		 Min, radius for Curve(mm)

2,000

 168

33

 308-b 169-b 296 31 100 100,125,150 1,500

2,800

 223

41

 310-b 171-b 337 38 115 100,125,150 1,500

3,000

 223

41

 310-b 171-b 337 38 115 100,125,150 1,500
5,000 223

48

 315-b 171-b 385 45 135 100,125,150 1,500

* G = Min, distance between hooks or from bottom of l-beam to Hook.
  c = Width of I-Beam
  b = c/2
